永磁变频PM系列
发布时间：2024-04-15 17:40:02 浏览：328次
| 型号 | 功率（KW） | 马力（HP） | 排气量（m³/min） | 压力（Bar） | 外形尺寸（mm） | 重量（kg） | 出口尺寸 |

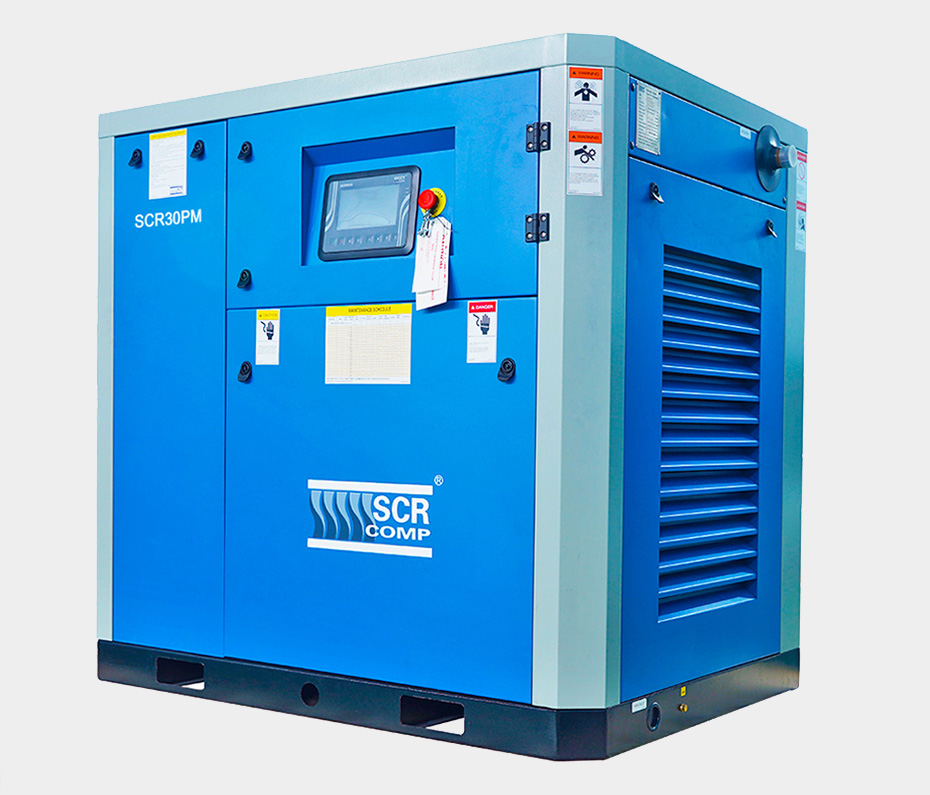

| SCR30PM-7 | 22 | 30 | 0.89-3.7 | 7 | 1200*800*1100 | 450 | R1 |
| SCR30PM-8 | 0.86-3.6 | 8 | |||||
| SCR30PM-10 | 0.84-3.5 | 10 | |||||
| SCR40PM-7 | 30 | 40 | 1.25-5.2 | 7 | 1200*800*1100 | 510 | R1 |
| SCR40PM-8 | 1.2-5.0 | 8 | |||||
| SCR40PM-10 | 1.26-4.2 | 10 | |||||
| SCR50PM-7 | 37 | 50 | 1.56-6.5 | 7 | 1300*900*1270 | 680 | R1 1/2 |
| SCR50PM-8 | 1.51-6.3 | 8 | |||||
| SCR50PM-10 | 1.39-5.8 | 10 | |||||
| SCR60PM-7 | 45 | 60 | 1.94-8.1 | 7 | 1300*950*1370 | 730 | R1 1/2 |
| SCR60PM-8 | 1.92-8.0 | 8 | |||||
| SCR60PM-10 | 1.7-7.1 | 10 | |||||
| SCR75PM-7 | 55 | 75 | 2.5-10.4 | 7 | 1800*1200*1550 | 1230 | Rc2 |
| SCR75PM-8 | 2.42-10.1 | 8 | |||||
| SCR75PM-10 | 2.04-8.5 | 10 | |||||
| SCR100PM-7 | 75 | 100 | 3.26-13.6 | 7 | 1800*1200*1550 | 1280 | Rc2 |
| SCR100PM-8 | 3.19-13.3 | 8 | |||||
| SCR100PM-10 | 2.83-11.8 | 10 | |||||
| SCR125PM-7 | 90 | 125 | 3.91-16.5 | 7 | 2900*1620*1692 | 2850 | DN65 |
| SCR125PM-8 | 3.84-16.0 | 8 | |||||
| SCR125PM-10 | 3.48-14.5 | 12.5 | |||||
| SCR125PM-12.5 | 3.07-12.8 | 10 | |||||
| SCR150PM-7 | 110 | 150 | 4.87-20.3 | 7 | 2900*1620*1692 | 2900 | DN65 |
| SCR150PM-8 | 4.8-20.0 | 8 | |||||
| SCR150PM-10 | 4.2-17.5 | 10 | |||||
| SCR150PM-12.5 | 3.74-15.6 | 12.5 | |||||
| SCR180PM-7 | 132 | 180 | 5.88-24.5 | 7 | 2700*1750*1850 | 3600 | DN65 |
| SCR180PM-8 | 5.76-24.0 | 8 | |||||
| SCR180PM-10 | 5.04-21.0 | 10 | |||||
| SCR180PM-12.5 | 4.32-18.0 | 12.5 | |||||
| 备注: > 排气量是在额定排气压力下测得，根据国际GB3853测试（等同于ISO1217 附录C）。 > 标准电压380V 50HZ，异电压、异频率电源配置，请在下单时说明。 > 推荐使用气量为额定气量的60%-100%。 > 高温、高湿、高寒、高粉尘等恶劣工况下使用的机器为非标机型。 > 外观、规格如有改进，厂家拥有最终解释权。 > 125PM-180PM为风冷电机。 | |||||||
